for 8 - 13 mm glass/Compilent with EN1154
Maximum capacities: max. door width 1000 mm
max. door weight 100 kg

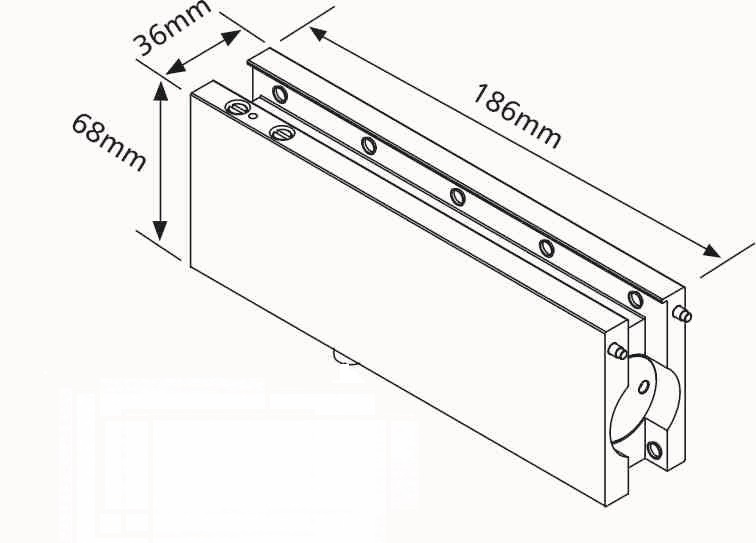

L x H x B: 186 x 68 x 36 mm
- Speed adjustable: Closing speed 150° ~ 10°
Braking speed 10° ~ 0°
Max. opening angle: 150° for left and right opening (double action)
Hold open at 90°
